WindCube 200s Scanning LiDAR

Category:
LiDAR
Brand:
Vaisala
Type:
WindCube 200s
vaisala-windcube-200s

Description

The Vaisala WindCube 200s is a scanning wind Lidar with a range of 6000 m for combined horizontal and vertical scanning and a maximum scanning height of 12000 m in vertical mode. A scanning pattern can be programmed, tailored specifically for the application with a resolution of 25 m, 50 m, 75 m or 100 m and accumulation time 0.1 s to 10 s.

Technical details

Model: Vaisala WindCube 200s

Range: PPI (Plan Position Indicator) or RHI (Range Height Indicator)

100 m to 6000 m (display range resolution 50 m, accumulation time 1 s)

50 m to 2500 m (display range resolution 25 m, accumulation time 1 s)

DBS (Vertical Profile)

Up to the Planetary Boundary Layer height if clear free troposphere above, or up to cirrus clouds with a maximum of 12 km (max. acquisition range)

Range of azimuth angle: 1 deg to 360 deg

Elevation angle: -10 deg to 190 deg

Angular resolution: 0.1 deg

Radial wind speed range: -30 m/s to 30 m/s

Operating temperature: -25 deg C to 45 deg C

Operating humidity: 10% to 100% RH

Ingress Protection: IP65

Weight: 232 kg

Eye safety: Class 1M IEC/EN 60825-1

Applications

With the WindCube 200s scanning Lidar, TNO can provide 3D wind field measurements for research or site layout studies.

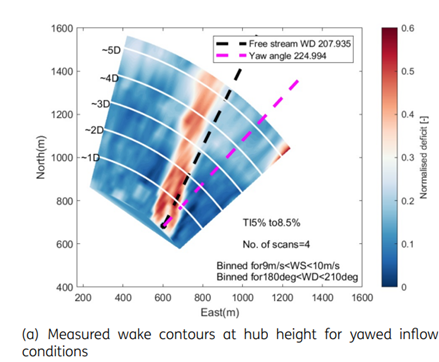

In the TIADE project, a joint research project between TNO (coordinator), LM Wind Power and GE Vernova, TNO has applied the WindCube 200s for a study on yawed inflow conditions. The final report of this project (TNO 2024 R12112, 18 December 2024) is available in the public TNO repository: https://repository.tno.nl/SingleDoc?docId=66629
